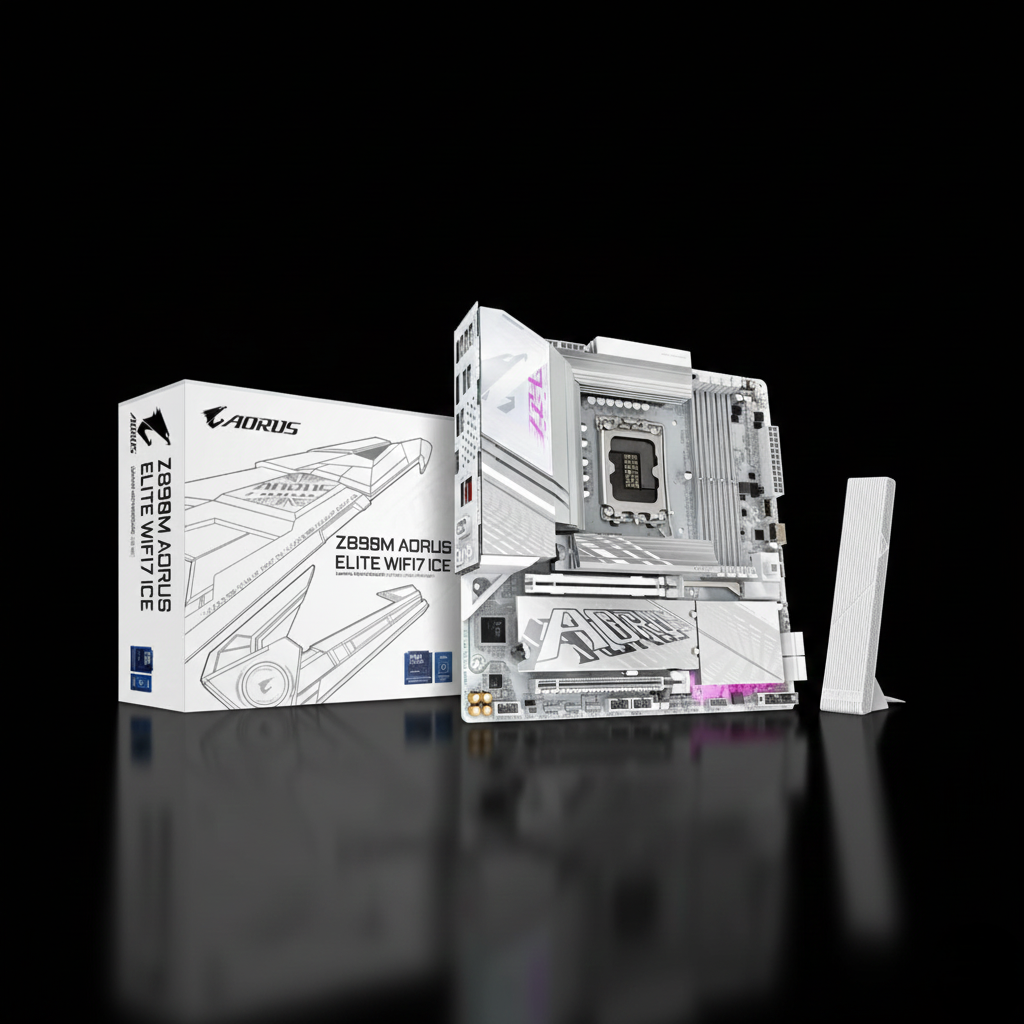

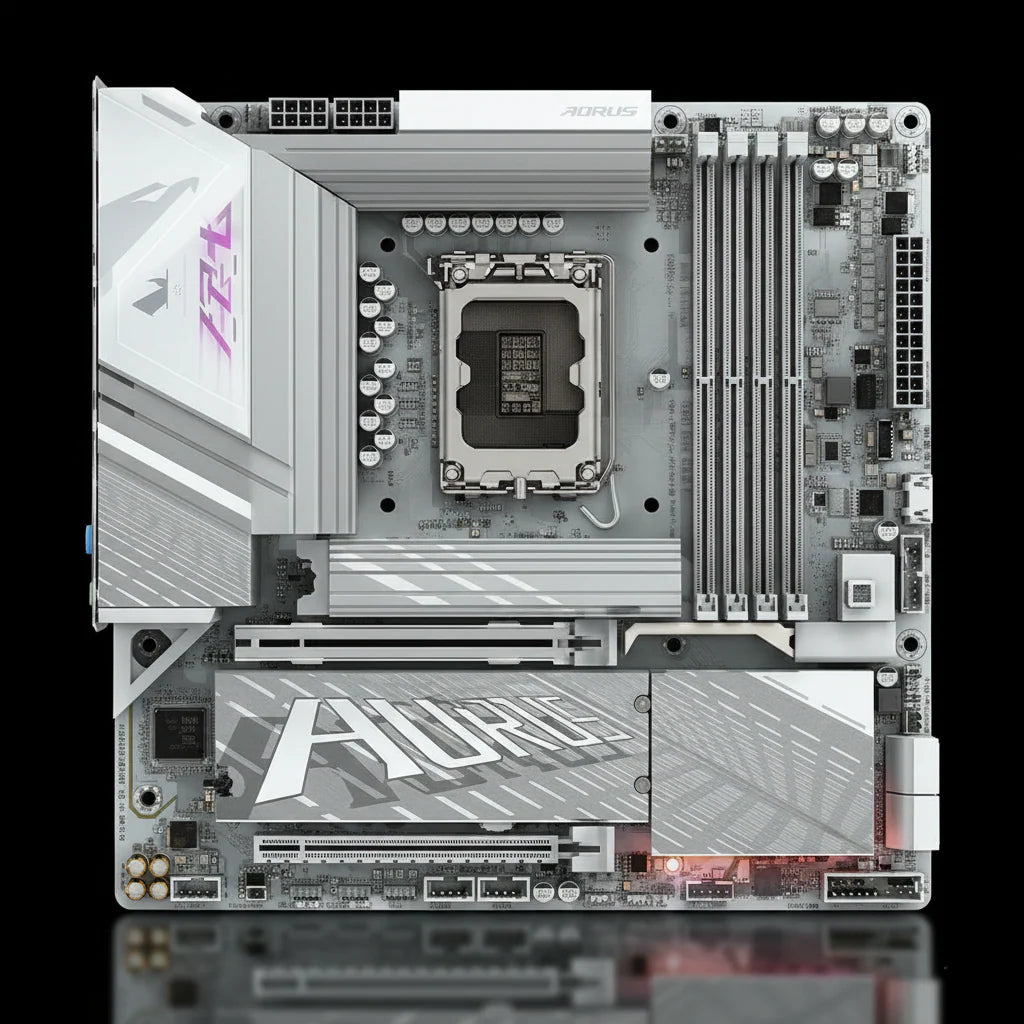

Gigabyte Z890M AORUS ELITE WIFI7 ICE Motherboard – LGA1851 – DDR5 – PCIe 5.0 – Bluetooth – ATX

• Brand: Gigabyte
• Model: Z890M AORUS ELITE WiFi 7 ICE
• Product Code (P/N): Z890M A ELITE WF7 ICE
• Condition: New
• Form Factor: Micro ATX
• CPU Socket: LGA 1851
• Chipset: Intel® Z890
• Supported CPUs: Intel® 15th Gen Arrow Lake

• Memory Type: DDR5
• Memory Slots: 4x DDR5 DIMM

• Expansion Slots:
- 1x PCIe 5.0 x16
- 1x PCIe 4.0 x16 (running at x4)
- 2x PCI slots

• Graphics Interface: PCI Express 5.0 x16
• Display Outputs:
- 1x HDMI
- 1x DisplayPort
- USB Type-C (DisplayPort Alt-Mode)
• Multi-Display Support: Up to 4 Displays

• Audio: Realtek® Audio CODEC + Optical Output

• Storage:
- 4x SATA III
- 1x NVMe PCIe Gen5 x4/x2 M.2
- 2x NVMe PCIe 4.0 / 3.0 M.2

• USB Connectivity:
- 6x USB 3.2 Gen2 Type-A
- 1x USB Type-C (USB 3.2 Gen2 + DisplayPort)
- 1x Thunderbolt™ 4 / USB4 Type-C
• USB Headers:
- 2x USB 2.0 Headers
- 1x USB 3 Header
- 1x Front USB 3.2 Gen2 Type-C Header

• Wireless Connectivity:
- MediaTek Wi-Fi 7 (MT7925)
- Bluetooth 5.3

• LAN: Realtek® 2.5GbE Ethernet
• RAID Support: RAID 0 / 1 / 5 / 10
• Fan Headers: 5x System Fan Headers
• Q-Flash: Supported
• Operating System Support: Windows 10 / 11 (64-bit)
• Warranty: 3 Years
