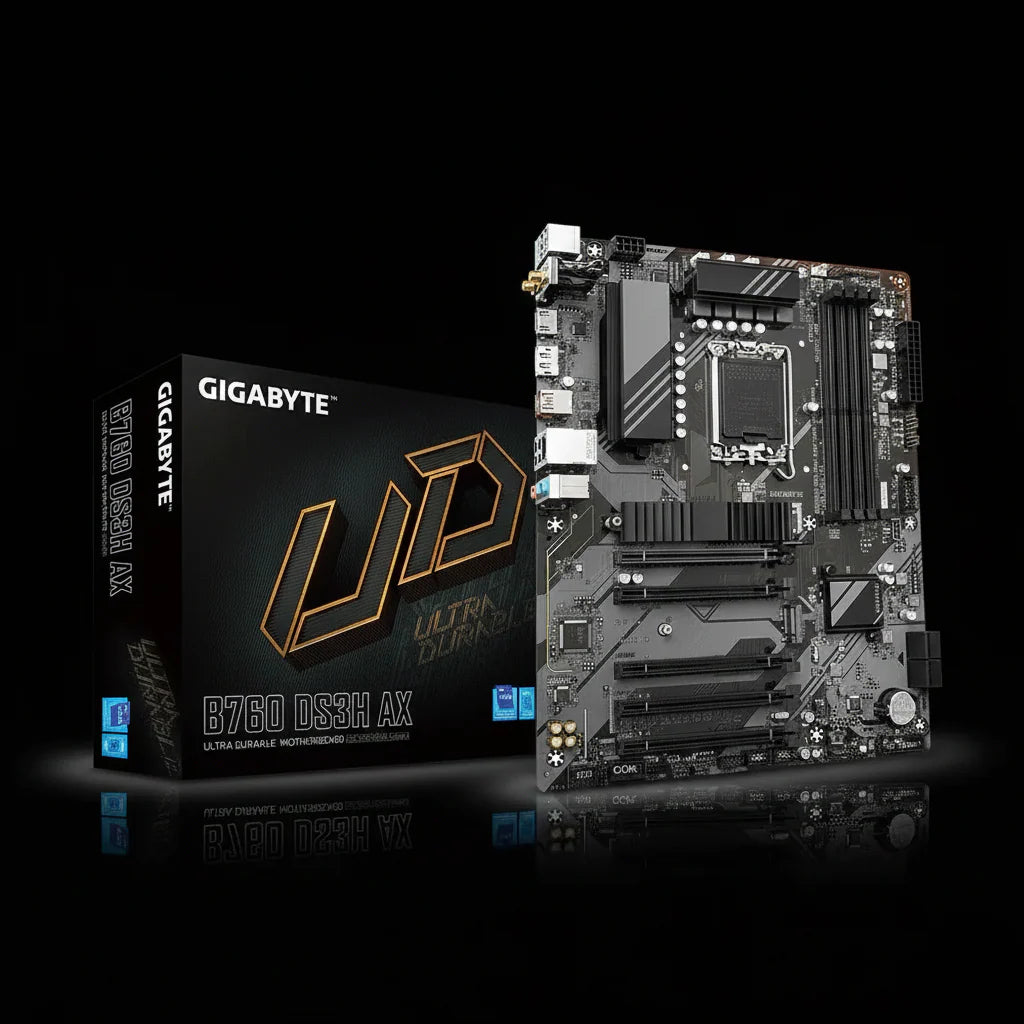

GIGABYTE B760 DS3H AX DDR5 ATX LGA1700 Motherboard – Rev. 1.1

1 / 2

GIGABYTE B760 DS3H AX DDR5 ATX LGA1700 Motherboard – Rev. 1.1

750.00 NIS

⚙️

Supports Intel® 12th Gen Processors

📶

Built-in Wi-Fi 6E + Bluetooth 5.2

⚡

DDR5 Memory up to 6400MHz

🚀

Dual PCIe 4.0 / 3.0 M.2 Slots

Description

The Gigabyte B760 DS3H AX DDR5 Rev.1.1 is a modern ATX motherboard built for Intel 12th–14th Gen processors. With DDR5 support, WiFi 6 connectivity, and multiple display outputs, it delivers stable performance and exceptional expandability for gaming and productivity builds.

✓

Intel® B760 Chipset for 12th–14th Gen CPUs
✓

DDR5 Memory Support for Enhanced Performance
✓

Built-in WiFi 6 & Bluetooth Connectivity
✓

ATX Full-Size Motherboard for Maximum Expansion
✓

Multiple Display Outputs (HDMI / DP)

• Brand: Gigabyte
• Model: B760 DS3H AX (Rev. 1.1)
• Condition: New
• Form Factor: ATX
• CPU Socket: LGA 1700
• Chipset: Intel® B760
• Supported CPUs: Intel® 12th Gen (LGA1700)

• Memory Type: DDR5
• Maximum Memory Speed: Up to 6400MHz
• Memory Slots: 4x DDR5 DIMM

• Expansion Slots:
- 1x PCIe 4.0 x16
- 2x PCIe 3.0 x1

• Graphics Interface: PCI Express 4.0 x16
• Display Outputs: 1x HDMI, 2x DisplayPort
• Multi-Display Support: Up to 3 Displays

• Audio: Realtek® Audio CODEC

• Storage:
- 2x NVMe PCIe 4.0 / 3.0 M.2

• USB Connectivity:
- 1x USB 3.2 Gen 1 Type-A
- 1x USB 3.2 Type-C
• USB Headers:
- 1x USB 2.0 Header
- 1x USB 3 Header

• Wireless Connectivity:
- AMD Wi-Fi 6E RZ608 (MT7921K)
- Bluetooth 5.2

• LAN: Intel® 2.5GbE Ethernet
• RAID Support: RAID 0 / 1 / 5 / 10
• Fan Headers: 3x System Fan Headers
• Q-Flash: Supported
• Operating System Support: Windows 10 / 11 (64-bit)
• Warranty: 3 Years
